What is the Incure Perimeter™ shield system?

Incure Perimeter™ is a front-and-rear tinted acrylic shield system for Incure F-Series™ flood lamps. The front shield wraps around the lamp and stand assembly to contain forward-scattered UV; the optional rear shield secures under the stand's mounting feet to block low-level backside radiation for a fully enclosed cure station.

Do I need both the front and rear shield?

The front shield is the primary containment and covers the direction the operator faces. The rear shield is a supplemental accessory for applications where complete 360° shielding is desirable — for example, on a shared production floor where personnel or equipment are positioned behind the lamp station.

Which F-Series™ models is it compatible with?

Both shields mount to the shared F-Series™ stand rather than the individual lamp head, so one shield size fits every stand-mounted F-Series™ model: F100, F200, F200P, F400, and F500. The F900P large-area bench unit uses a different stand and is not compatible.

Does the shield block my view of the cure process?

No. Both shields are made of tinted acrylic rather than opaque material, so the operator can monitor the part and the cure cycle in progress while the shield blocks scatter UV from reaching them.

Do I need tools to install the shields?

No. The front shield lifts on and off the stand by an integrated handle. The rear shield slides into place under the stand's mounting feet and is held by the stand's own weight — no fasteners or tools required for either.

What material are the shields made of?

Both the front and rear shields are constructed from tinted acrylic sheet, formed with flared side panels for clearance and reinforced mounting feet.

UV Safety Shields for F-Series™ Flood Lamps — Incure Perimeter™

One front-and-rear shield assembly fits every F-Series™ stand-mounted model — F100, F200, F200P, F400, and F500 — containing scatter UV from the cure area without blocking the operator's view of the process.

Request a Quote View Products

One Shield Fits Every F-Series™ Stand

The shield mounts to the shared F-Series™ stand, not the individual lamp head — one size covers F100, F200, F200P, F400, and F500 with no model-specific ordering.

See the Cure Without the Exposure

Tinted acrylic construction lets the operator monitor the cure in progress while blocking forward- and back-scattered UV from reaching bystanders.

Installs in Seconds — No Tools Required

The front shield lifts on and off by an integrated handle; the rear shield slides under the stand's mounting feet and is held by its own weight.

Specifications

Model Comparison

Side-by-side specifications for the Incure Perimeter™ front and rear shields.

Incure Perimeter™ UV Shields
Specification	Front ShieldPRM-FRONT	Rear ShieldPRM-REAR
Material	Tinted Acrylic	Tinted Acrylic
Mounting	Wraps around F-Series™ lamp & stand assembly; integrated carry handle	Secures under stand mounting feet; flared sides clear front shield tilt
Weight	6 lbs	6 lbs
Dimensions (W × D × H)	12 × 11.5 × 11 in	13 × 11 × 5 in
Installation	No tools — lifts on/off by handle	No tools — slides into place under stand feet
Compatible F-Series™ Models	F100 · F200 · F200P · F400 · F500	F100 · F200 · F200P · F400 · F500
Best For	Primary front-of-lamp operator shielding	Supplemental backside containment for full enclosure

Order

Order the Incure Perimeter™

Tinted acrylic front and rear UV shields for Incure F-Series™ flood lamps.
One shield assembly fits F100, F200, F200P, F400, and F500.

Model	Image	Description	Specifications	TDS	Order 4–6 WEEKS ARO

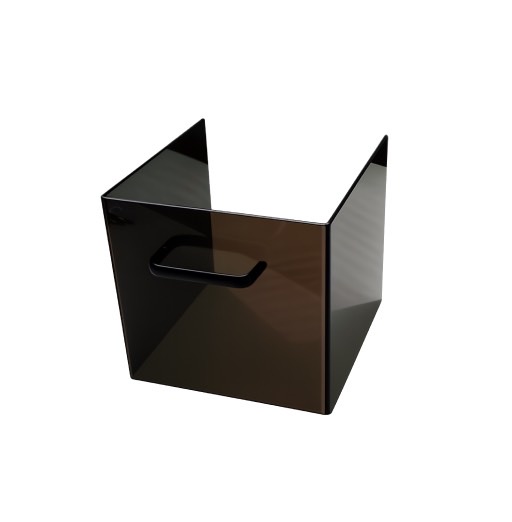

Perimeter™ Front Shield PRM-FRONT		Incure Perimeter™ Front Shield is a tinted acrylic wrap-around shield that mounts over the front of any F-Series™ flood lamp and stand assembly. One shield size fits F100, F200, F200P, F400, and F500 — the shield attaches to the shared stand, not the individual lamp head, so it never needs to be re-selected when the lamp configuration changes. The tinted acrylic body lets the operator see the cure in progress while blocking forward-scattered UV. Lifts on and off by an integrated handle — no tools required.	Material: Tinted Acrylic Weight: 6 lbs Dimensions: 12 × 11.5 × 11 in Installation: No tools — handle lift-off Compatible: F100 · F200 · F200P · F400 · F500	TDS

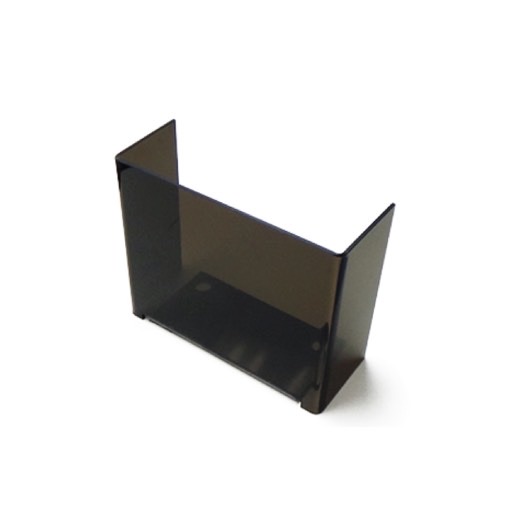

Perimeter™ Rear Shield PRM-REAR		Incure Perimeter™ Rear Shield is a supplemental tinted acrylic panel that blocks low-level backside UV radiation for applications where full enclosure is desirable. It secures under the F-Series™ stand mounting feet and has flared sides that clear the front shield's tilt range without obstruction. Installs in seconds with no tools — slide it into place and it's held by the stand's own weight.	Material: Tinted Acrylic Weight: 6 lbs Dimensions: 13 × 11 × 5 in Installation: No tools — slides under stand feet Compatible: F100 · F200 · F200P · F400 · F500	TDS

Applications

Contain UV Without Isolating the Station

Wherever an F-Series™ lamp shares floor space with people or other
equipment, the Perimeter™ shield keeps scatter UV inside the cure area.

Shared Production Floors

Blocks stray UV from an F-Series™ cure station from reaching adjacent operators and equipment on an open floor plan, without the cost of a dedicated partition wall.

Multi-Operator Assembly Cells

Lets an F-Series™ station run side-by-side with other manual assembly work — the tinted shield contains scatter UV while keeping the cure visible to the operator running it.

R&D and QC Benches

Contains scatter UV on a shared lab bench where other unprotected work is happening nearby, without walling off the curing station from the rest of the bench.

UV Safety Program Documentation

A physical engineering control that supports a facility's UV exposure and PPE safety program alongside operator eyewear such as Incure Vison™.

Compact Bench-Mount Cure Cells

Fits F100, F200, and F200P bench-mount stations without modification — the same shield used across the compact F-Series™ lineup.

Portable Handheld Staging Areas

Covers F400 and F500 portable lamps when staged on their stand between handheld uses, containing scatter UV during stationary operation.

FAQ

Frequently Asked Questions

Common questions about the Incure Perimeter™ UV shield system.

Incure Perimeter™ is a front-and-rear tinted acrylic shield system for Incure F-Series™ flood lamps. The front shield wraps around the lamp and stand assembly to contain forward-scattered UV; the optional rear shield secures under the stand's mounting feet to block low-level backside radiation for a fully enclosed cure station.
The front shield is the primary containment and covers the direction the operator faces. The rear shield is a supplemental accessory for applications where complete 360° shielding is desirable — for example, on a shared production floor where personnel or equipment are positioned behind the lamp station.
Both shields mount to the shared F-Series™ stand rather than the individual lamp head, so one shield size fits every stand-mounted F-Series™ model: F100, F200, F200P, F400, and F500. The F900P large-area bench unit uses a different stand and is not compatible.
No. Both shields are made of tinted acrylic rather than opaque material, so the operator can monitor the part and the cure cycle in progress while the shield blocks scatter UV from reaching them.
No. The front shield lifts on and off the stand by an integrated handle. The rear shield slides into place under the stand's mounting feet and is held by the stand's own weight — no fasteners or tools required for either.
Both the front and rear shields are constructed from tinted acrylic sheet, formed with flared side panels for clearance and reinforced mounting feet.

UV Safety Shields for F-Series™ Flood Lamps — Incure Perimeter™

Model Comparison

Order the Incure Perimeter™

Contain UV Without Isolating the Station

Frequently Asked Questions

Ready to Specify Incure Perimeter™ UV Shields?
