UV LED Flood Curing Lamps — Incure L-Series™
The Incure L-Series™ UV LED flood irradiators deliver uniform, high-intensity UV output across curing areas from 1″×1″ up to 14″×14″. The L88, L1010, L1212, and L1414 cover mid-range batch curing through large-area production-line integration. Available in 365 nm, 385 nm, 395 nm, and 405 nm. Most models pair with compatible Incure C-Series UV cure chambers.
Technical Specifications
Side-by-side specifications across the Incure L-Series™ UV LED flood lamp range.
| L-Series™ UV LED Flood Lamps | |||||||||
|---|---|---|---|---|---|---|---|---|---|

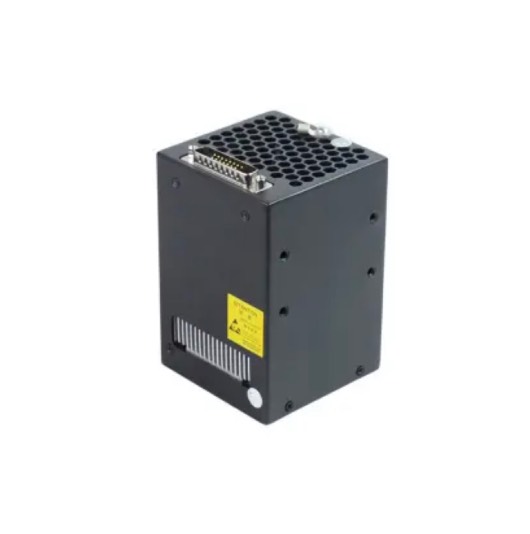

| Specification | L11 | L22 | L33 | L44 | L64 | L88 | L1010 | L1212 | L1414 |
| Image |
|
|
|
|
|
|
|
|
|

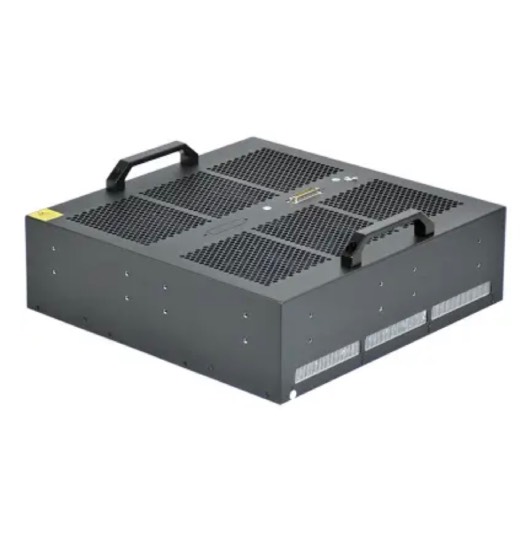

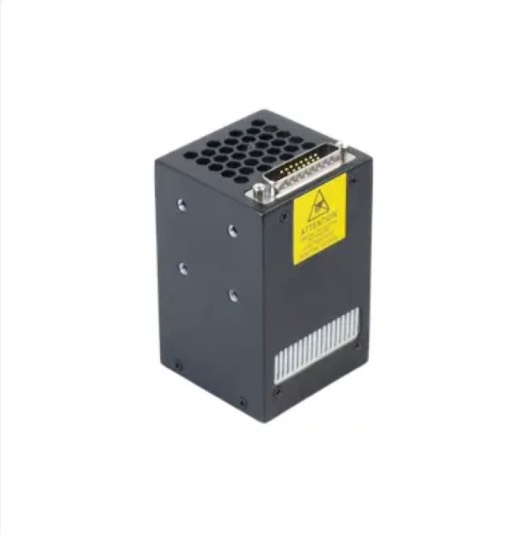

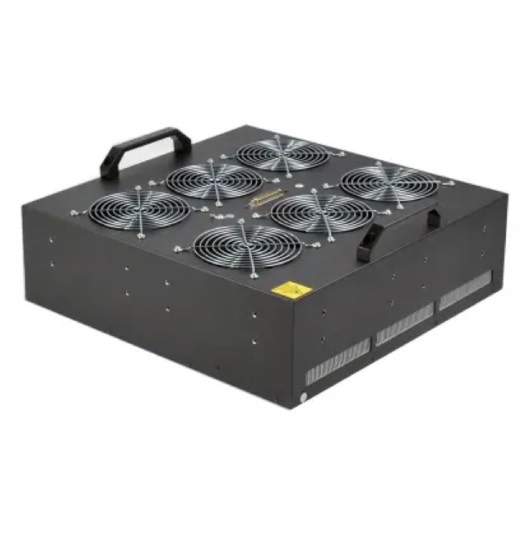

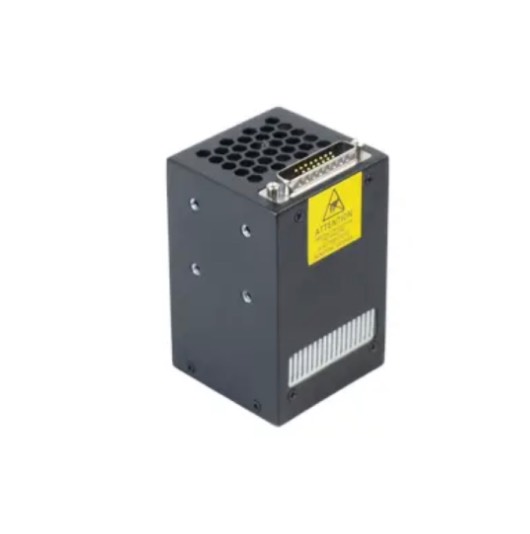

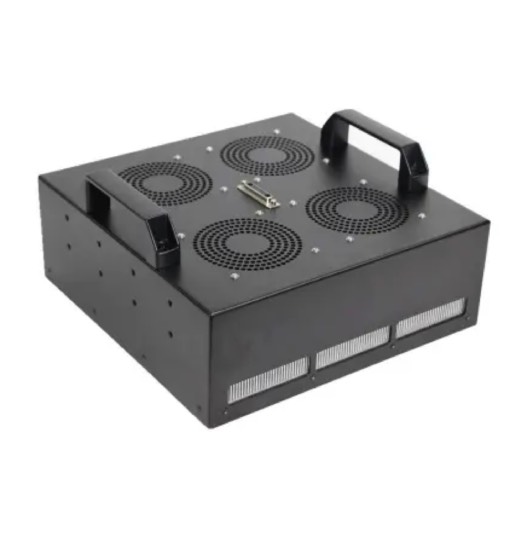

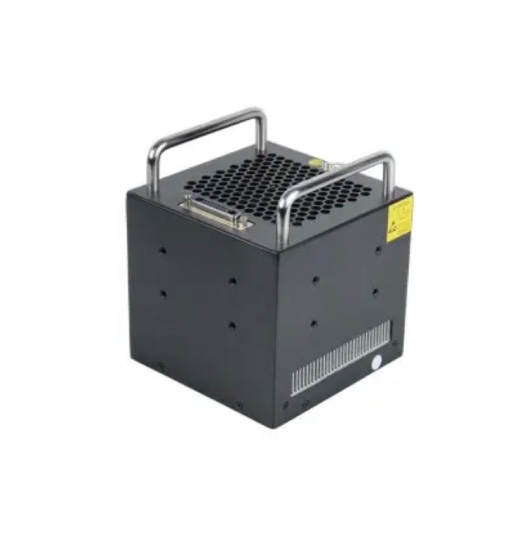

| Irradiation Area | 1″ × 1″ | 2″ × 2″ | 3″ × 3″ | 4″ × 4″ | 6″ × 4″ | 8″ × 8″ | 10″ × 10″ | 12″ × 12″ | 14″ × 14″ |
| LED Count | 9 LEDs | 36 LEDs | 81 LEDs | 144 LEDs | 216 LEDs | 576 LEDs | 900 LEDs | 1,296 LEDs | 1,764 LEDs |
| Peak Intensity @ 2″ (365 nm) |
3,600 mW/cm² | 3,600 mW/cm² | 2,600 mW/cm² | 2,600 mW/cm² | 1,600 mW/cm² | 1,600 mW/cm² | 1,600 mW/cm² | 1,600 mW/cm² | 800 mW/cm² |
| Peak Intensity @ 2″ (385/395/405 nm) |
4,300 mW/cm² | 4,300 mW/cm² | 3,100 mW/cm² | 3,100 mW/cm² | 1,900 mW/cm² | 1,900 mW/cm² | 1,900 mW/cm² | 1,900 mW/cm² | 950 mW/cm² |
| Available Wavelengths | 365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
365 nm 385 nm 395 nm 405 nm |
| LED Lifespan | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs | > 20,000 hrs |
| Control Interface | Foot-switch / PLC LCD panel |
Foot-switch / PLC LCD panel |
Foot-switch / PLC LCD panel |
Foot-switch / PLC LCD panel |
Foot-switch / PLC LCD panel |
Foot-switch / PLC / RS232 | Foot-switch / PLC / RS232 | Foot-switch / PLC / RS232 | Foot-switch / PLC / RS232 |
| Operating Modes | Timer & Continuous | Timer & Continuous | Timer & Continuous | Timer & Continuous | Timer & Continuous | Timer & Continuous | Timer & Continuous | Timer & Continuous | Timer & Continuous |
| Power Input | 100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
100 – 240 V, 50/60 Hz Auto-ranging |
| Cooling | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers | Forced-air, louvers |
| Chamber Compatible | C131C / C131D / C141C | C131C / C131D / C141C | C131C / C131D / C141C | C131C / C131D / C141C | — | C191C | C191C | C191C | C191C |
Select Your L-Series™ Configuration
From compact benchtop batch curing to high-speed linear production lines — select the L-Series™ model
that fits your irradiation area, intensity requirement, and integration environment.
Built for High-Throughput UV Curing
Incure L-Series™ UV LED flood lamps deliver uniform, repeatable UV dose across broad curing areas —
enabling consistent results across industrial and precision manufacturing applications.
Frequently Asked Questions
Common questions about the Incure L-Series™ UV LED flood lamps.
-
The Incure L-Series™ ranges from compact bench-top units to large-area production flood lamps. Models vary by irradiation area, LED array size, and peak intensity. Select the model whose curing area and intensity output match your process requirements — contact support@uv-incure.com for a model recommendation.
-
Incure L-Series™ flood lamps are available in 365 nm, 385 nm, 395 nm, and 405 nm. Each unit is factory-configured to a single wavelength. Select the wavelength that matches your UV adhesive or coating's peak absorption spectrum.
-
No. Unlike mercury arc flood lamps that require several minutes of warm-up before reaching stable output, Incure L-Series™ UV LED flood lamps reach full intensity instantly at switch-on. There is no warm-up period, no cool-down requirement, and no shutter mechanism needed.
-
The Incure L-Series™ controller is switchable between timer mode and continuous mode. External triggering is supported via foot-switch, PLC digital I/O, or RS232 serial interface — making the system suitable for both manual workstations and fully automated inline production lines.
-
Yes. Incure L-Series™ UV LED flood lamps pair with Incure C-Series UV cure chambers. The L11–L44 are matched to the C131C, C131D, and C141C; the L88–L1414 are matched to the C191C. Contact support@uv-incure.com to confirm the right chamber for your lamp model.
-
Incure L-Series™ LEDs are rated for more than 20,000 hours of operation. At 8 hours per day, this exceeds 2,500 working days. Unlike mercury arc lamps, the LEDs require no recalibration, no bulb replacement during normal service life, and no factory returns.
