What lamp type does the Incure S20™ use?

The Incure S20™ uses a 200W mercury arc lamp. Mercury arc technology produces a broad-spectrum output covering 275–650 nm, making it suitable for UV-cure adhesives with a wide range of peak absorption wavelengths.

What is the peak irradiance of the Incure S20™?

The Incure S20™ delivers greater than 21 W/cm² (up to 23 W/cm²) at the lightguide tip. This ultra-high intensity output enables fast cure cycles and effective curing of thick adhesive cross-sections.

What wavelength range does the S20™ cover?

The Incure S20™ covers 275–650 nm, spanning deep UV through visible light. This broad spectrum makes it compatible with a wide range of UV-cure adhesive formulations including UV acrylates, epoxies, and cyanoacrylates.

How many lightguide poles does the S20™ support?

The Incure S20™ controller pairs with liquid lightguide assemblies in 1-pole, 2-pole, 3-pole, and 4-pole configurations, supporting single-point to quad-point simultaneous curing from one unit. All lightguide configurations include a pair of UV-protective safety goggles.

Does the Incure S20™ require a warm-up period?

Yes. As a mercury arc lamp system, the Incure S20™ requires a warm-up period of 1–2 minutes before reaching full operating intensity. The lamp should also be allowed to cool before restarting after shutdown.

How long does the mercury arc lamp last in the S20™?

The 200W mercury arc lamp in the Incure S20™ has a rated life of greater than 2,000 hours. Lamp replacement is required at end of life and may involve recalibration — for a calibration-free alternative, consider the Incure L9000™ UV LED spot curing lamp.

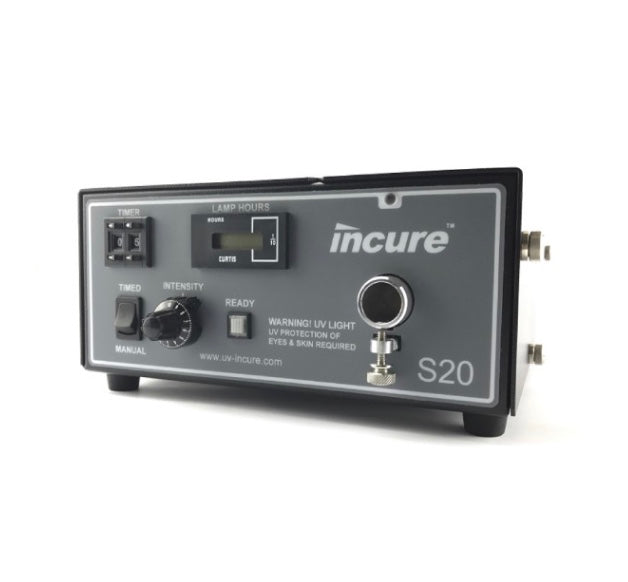

UV Arc Spot Curing Lamp — Incure S20™

Ultra-high intensity UV spot curing with >21 W/cm² output from a 200W mercury arc lamp. Broad-spectrum 275–650 nm coverage cures virtually any UV-sensitive formulation. Configure with 1 to 4-pole liquid lightguides for single-point or simultaneous multi-point curing.

Request a Quote View Configurations

>21 W/cm² at Lightguide Tip

>21 W/cm² at the lightguide tip — high-energy delivery for fast cure cycles and thick adhesive cross-sections.

Broad-Spectrum 275–650 nm

Mercury arc output spans UV to visible — compatible with virtually all photoinitiator chemistries and UV-cure adhesive formulations.

1 to 4-Pole Lightguides

Split UV output across up to four simultaneous cure points — ideal for multi-bonding fixtures and high-throughput automated assembly lines.

Specifications

Technical Specifications

Full system specifications for the Incure S20™ UV Spot Curing Lamp.
Available in 100–120 VAC and 200–240 VAC configurations.

S20™ UV Spot Curing Lamp
Specification	100–120 VAC	200–240 VAC
AC Input Voltage	100–120VAC ± 10%	200–240VAC ± 10%
AC Input Current	4.7 Amperes	2.5 Amperes
Source Input Frequency	47 Hz to 63 Hz
Lamp Power Regulation	± 1.0%
Fan / Auxiliary Voltage	24V @ 0.5A
Lamp Type	200 Watt Mercury Arc
Burning Position	Horizontal
Radiation Flux	275–650 nm
Warm-up Time	1 to 2 minutes
Cooling Time Before Restart	2 to 5 minutes typical
Output Intensity	>21 W/cm²
Intensity Range	25–100% adjustable
Timer	1–99 seconds programmable
Lamp Life	>2,000 hours typical
Operating Temperature	+10°C to +40°C
Relative Humidity	30–75% operating
Cooling	Dual DC fans, filtered
Over-temp Shutdown	65°C (internal)
Dimensions (L × W × H)	10.51″ × 8.64″ × 4.05″
Weight	5.92 lbs (2.69 kg)

* Output intensity measured at lightguide tip at 100% output. Actual values may vary with lightguide configuration and tip condition. Protective goggles supplied with all lightguide configurations.

Configurations

Lightguide Options

The S20™ controller pairs with liquid lightguide assemblies from single-point to quad-point output.
All configurations include a pair of UV-protective safety goggles.

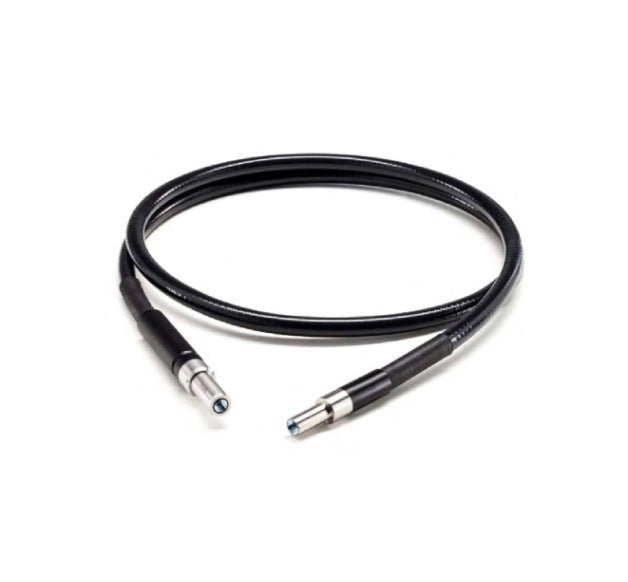

Incure S20™ UV spot lamp with single-pole liquid lightguide for precision UV curing

1-Pole Lightguide

Single output tip for focused, high-intensity spot curing. Best for precision bonding of individual joints, fibre optic connectors, and small component assembly.

Incure S20™ UV spot lamp with dual-pole liquid lightguides for simultaneous curing

2-Pole Lightguide

Splits UV output across two simultaneous cure points. Doubles throughput on symmetrical assemblies and dual-joint bonding fixtures without adding a second controller unit.

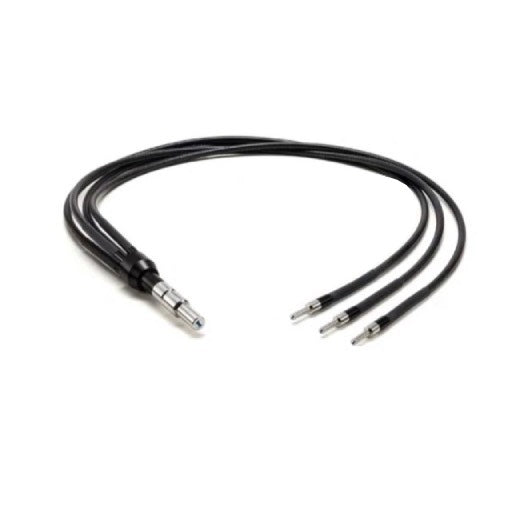

Incure S20™ UV spot lamp with three-pole liquid lightguide array

3-Pole Lightguide

Three-way UV output for simultaneous curing of three bond points in a single cycle. Suited to connector potting, triangular fixture layouts, and multi-joint component assemblies.

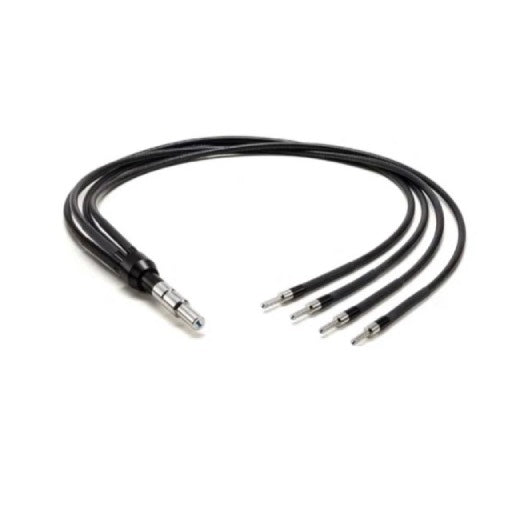

Incure S20™ UV spot lamp with four-pole liquid lightguide for high-throughput curing

4-Pole Lightguide

Maximum multi-point configuration — four simultaneous cure outputs from a single S20™ controller. Maximises throughput on high-volume automated assembly lines with multiple bonding positions.

Order

Configure & Order the S20™

Lightguide variants include a pair of UV-protective safety goggles. Contact us for volume pricing and lead times.

Applications

Built for Demanding Industrial Curing

The Incure S20™'s ultra-high intensity output, broad-spectrum wavelength coverage,
and multi-pole lightguide system make it a versatile spot curing solution.

Electronics Assembly

PCB conformal coat curing, SMD component bonding, underfill dispensing, and FPC connector assembly — multi-pole configurations cure multiple joints in a single trigger.

Medical Device Manufacturing

Catheter tip bonding, sensor encapsulation, needle hub assembly, and sterile device sealing with repeatable, programmable dose delivery via the timer function.

Focused UV beam precision spot curing adhesive on a component for Incure S20™ optical and fibre optic assembly

Optical & Fibre Optic

Precision lens bonding, fibre optic ferrule assembly, and waveguide alignment — broad-spectrum output ensures complete cure of optical adhesives at each wavelength.

Multi-Point Fixture Bonding

2, 3, and 4-pole lightguide configurations enable simultaneous curing across multiple bond points in custom fixtures, drastically reducing cycle time on repetitive assemblies.

Industrial Adhesive Bonding

Structural bonding, gasketing, and potting applications across electronics, automotive, and general manufacturing where high-intensity spot curing is required.

Laboratory precision equipment for Incure S20™ UV spot lamp R&D and process development

R&D & Process Development

Precise, repeatable UV dose delivery for adhesive qualification, cure-schedule optimisation, and process parameter development in laboratory settings.

FAQ

Frequently Asked Questions

Common questions about the Incure S20™ UV spot curing lamp.

The Incure S20™ uses a 200W mercury arc lamp. Mercury arc technology produces a broad-spectrum output covering 275–650 nm, making it suitable for UV-cure adhesives with a wide range of peak absorption wavelengths.
The Incure S20™ delivers greater than 21 W/cm² (up to 23 W/cm²) at the lightguide tip. This ultra-high intensity output enables fast cure cycles and effective curing of thick adhesive cross-sections.
The Incure S20™ covers 275–650 nm, spanning deep UV through visible light. This broad spectrum makes it compatible with a wide range of UV-cure adhesive formulations including UV acrylates, epoxies, and cyanoacrylates.
The Incure S20™ controller pairs with liquid lightguide assemblies in 1-pole, 2-pole, 3-pole, and 4-pole configurations, supporting single-point to quad-point simultaneous curing from one unit. All lightguide configurations include a pair of UV-protective safety goggles.
Yes. As a mercury arc lamp system, the Incure S20™ requires a warm-up period of 1–2 minutes before reaching full operating intensity. The lamp should also be allowed to cool before restarting after shutdown.
The 200W mercury arc lamp in the Incure S20™ has a rated life of greater than 2,000 hours. Lamp replacement is required at end of life and may involve recalibration — for a calibration-free alternative, consider the Incure L9000™ UV LED spot curing lamp.
